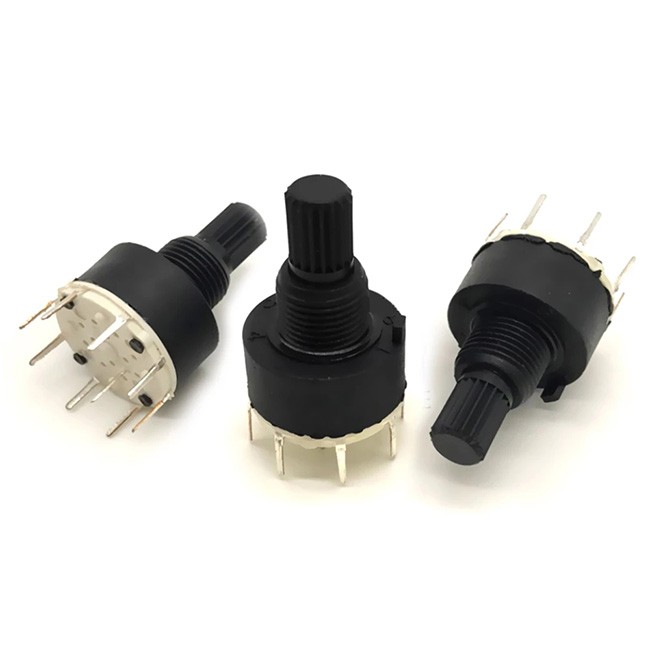

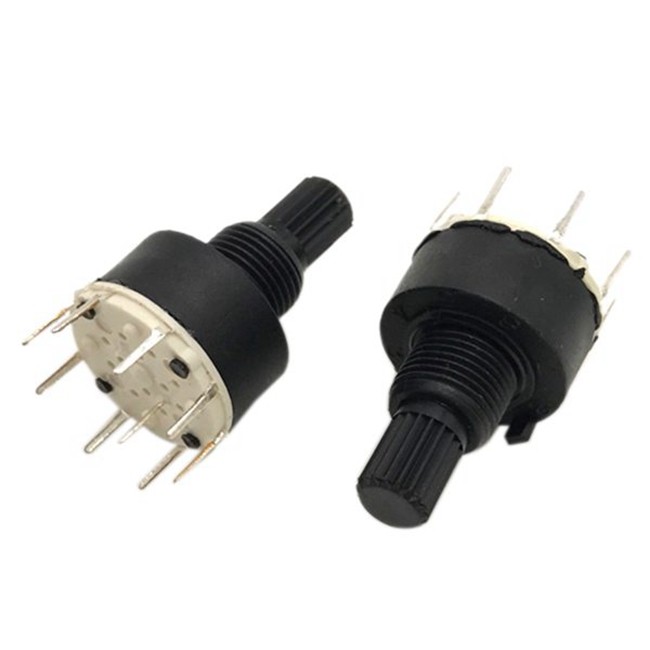

RS16 Rotary Switches

RS16 rotary switch can be selected to use 1~12 positions. 1-2 poles are used, and has positioning edge design. RS16 rotary switch is small in size, easy to install, and has a service life of up to 10000 times.
In use, we provide handle lengths of various specifications and heights to effectively reduce the trouble during assembly.
Applied in, chassis power supply, led lighting power supply, communication equipment, interphone, high-value toys, socket voltage selector, game machine, video recorder, air filter, piano, pet trainer, etc

Teminal strength :5N for 1 Min

Withstand vibration properly :10~55~10Hz/swing1.5mm,x,y,z direction 2 hours

2.Electrical characteristics

Poles :1 or 2

Sections:2 .3.4.5.6.7.8.10.12

Contact resistance between terminals :50MΩ Max

Insulation resistance :500MΩ Min at DC 500V

Dielectric strength :1 minute at AC 500V

3.Endurance characteristics

Rotational Life:10,000±200cycles

Storage Temperature Range :

-30C ~ +85C
Operaating Temperature Range-20C ~ +80C
Soldering Heat Characteristic:Dipping in solder:230C±5C or less,within 3S
Solder by hand:360C±5C or less,within 3S

16mm <a href=https://www.lg<a href=https://www.lgswitch.com/en/product.html target='_blank'>Switch</a>.com/en/index.html target='_blank'><a href=https://lgswitch.com/en/Rotary-Switches.html target='_blank'>Rotary Switch</a></a>es
