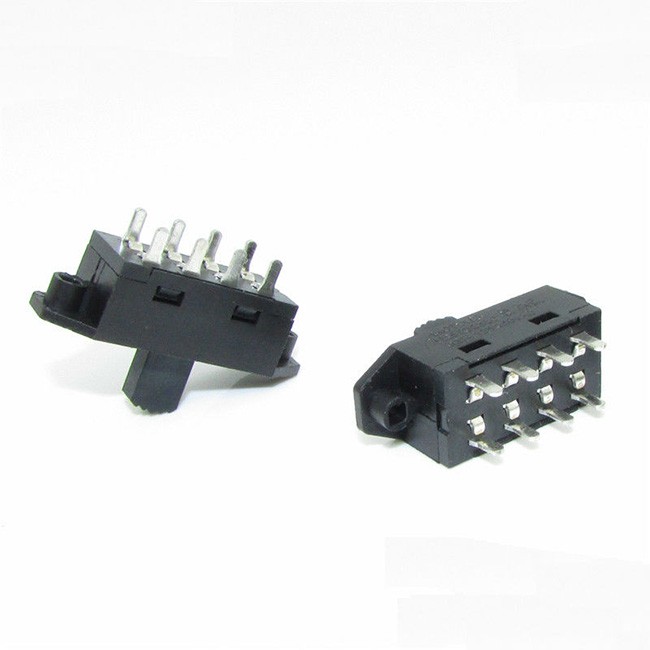

2-6 Position Slide Switch

The Slide Switches have 2 to 6 Position,6A to 16A variety of functions to choose.UL,CQC,ENEC,CB etc Certification standards.
The Slide Switches have Automatic workshope, More efficient, Higher standard. Keep the cost down. * All the material RoHS Compliant, Materials bulk purchase keep the cost down.

Slide Switch MODEL :	H25 UL61058 SLIDE SWITCH
QUICK CONNECTOR TYPE :	SP2T,DP2T,DP3T,DP4T,DP5T,DP6T
RATING :	16(4)A 125/250VAC
CONTACT RESISTANCE ：	<50mΩ(INITIAL)
INSULATION RESISTANCE ：	≥100MΩ(DC500V/1MIN)
DIELECTRIC STRENGTH ：	1500V/0.5mA /1MIN
MECHANICAL LIFE ：	>50000 CYCLES
ELECTRICAL LIFE ：	>10000 CYCLES
SOLDER ABILITY OF TERMINAL:	MAX 350 °C, 3S
OPERATION FORCE ：	850±300gf
MATERIALS ：	ALL MATERIALS ARE ROHS COMPLIANT
